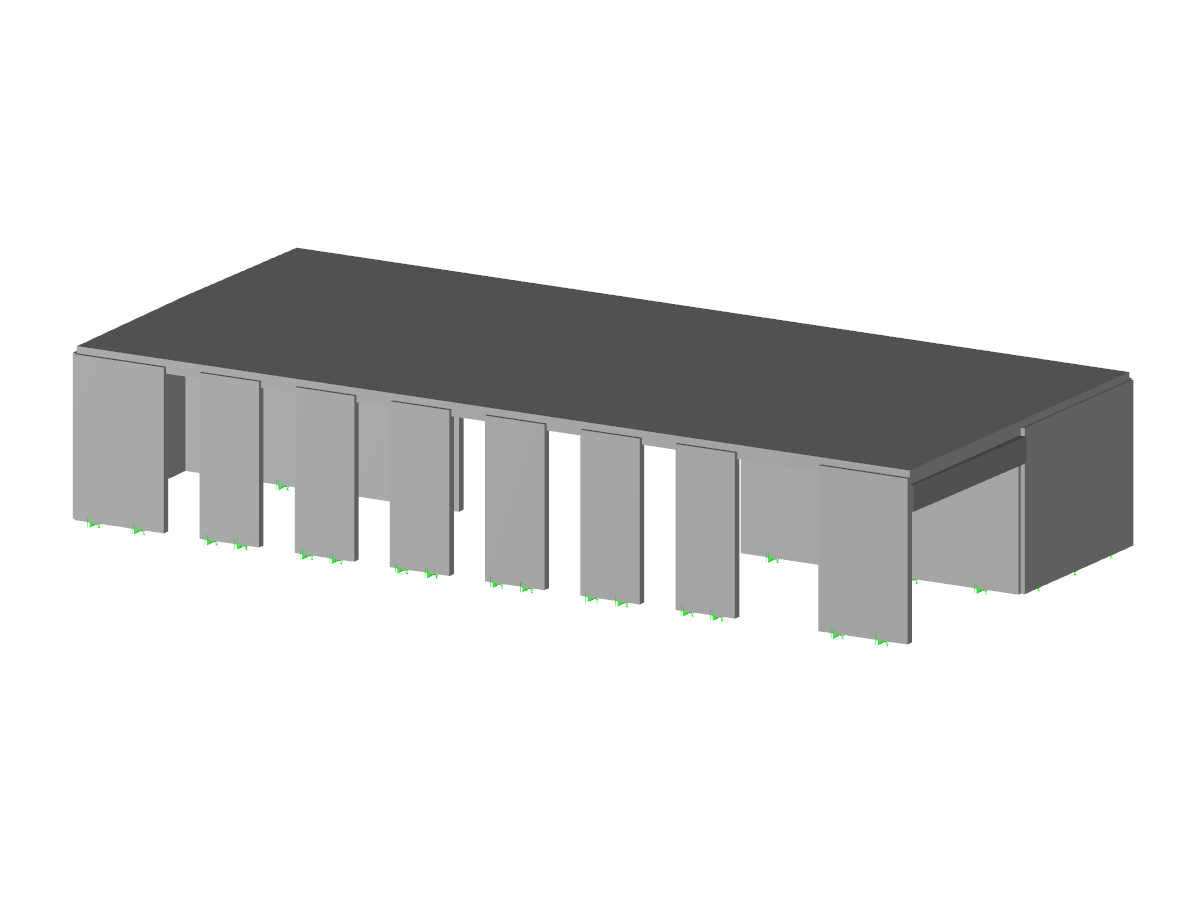

Model 1195 presents a modern office building with an integrated underground parking garage, built as a robust reinforced concrete structure. The analysis is based on precise structural calculations using RFEM.
Model Used in
Office Building with Underground Parking – Reinforced Concrete Structure
| Number of Nodes | 236 |
| Number of Lines | 289 |
| Number of Members | 41 |
| Number of Surfaces | 29 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 8 |
| Number of Result Combinations | 3 |
| Total Weight | 1731,543 t |
| Dimensions (Metric) | 28.000 x 26.000 x 10.250 m |
| Dimensions (Imperial) | 91.86 x 85.3 x 33.63 feet |
| Program Version | 5.02.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
